Application

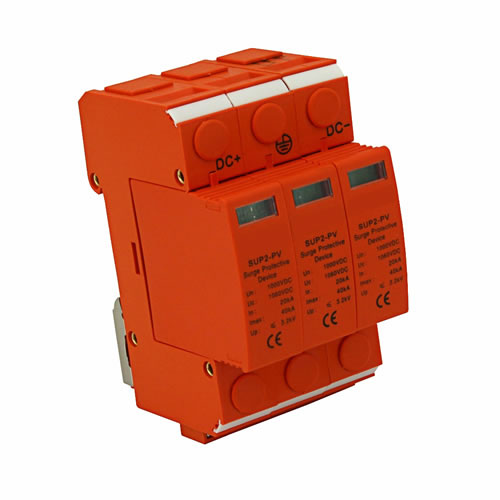

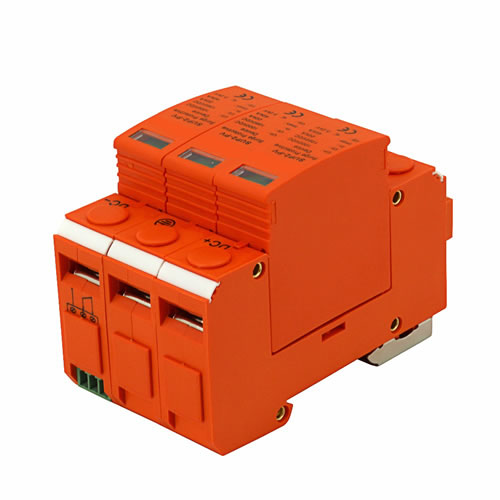

SSPD surge protective device, protect against lightning surge voltages in solar system (photovoltaic power supply system).
These units must be installed in parallel on the DC networks to be protected and provide common and different modes protection. Its installed location are recommended at both ends of the DC power supply line ( solar panel side and inverter/converter side), especially if the line routing is external and long.High energy MOVs equipped with specific thermal disconnectors and related failure indicators.
Specification
|
SSPD series surge protector
|
SSPD | |||
| PV DC-specific(LEC 66143-1/EN 61643-1 1) | ||||
| Pole | 3P | |||
| Electrical Parameter | ||||
| Classified test | II | |||
| Uoc max(V DC) | 1000 | |||
| Uc(V CD) | 1000 | |||
| In(8/20)us(KA) | 20 | |||
| Imax(8/20)us(KA) | 40 | |||
| Up(KV) | 3.8 | |||
| Remote control and indication | ||||
| Indication window | ||||
| Piug-in Module | ||||
| Remote signal contact | ||||
| Remote signal contact | maximum working voltage(V) | 250 AC/30V DC | ||
| maximum working current(A)IA(250V/AC | IA(250V/AC) | |||
| IA(30V DC | IA(30V/AC) | |||
| Wiring&installation | ||||
| Wiring capacity(mm2) | Hard wire | 4~25 | ||
| Flexible wire | 4~16 | |||
| Stripping length(mm) | 10 | |||
| Terminal screwa | M5 | |||
| Torque(Nm) | Main ciruit | 3.5 | ||
| Remote signal contact | 0.25 | |||
| Protection class | All profile | IP40 | ||
| Connection port | IP20 | |||
| Installation environment | NO obvious shock and vibration | |||
| Altitude(m) | ≤2000 | |||
| Working Temperature | -3.0~+70 | |||
| Relative humidily | 30%~90% | |||
| How to install | Installed with H-7.5/DIN35 steel mounting rail | |||
| Size(mm)(W×H×L) | W | 54 | ||
| H | 90 | |||
| L | 67.6 | |||
| Weight(kg) | 0.36 | |||
