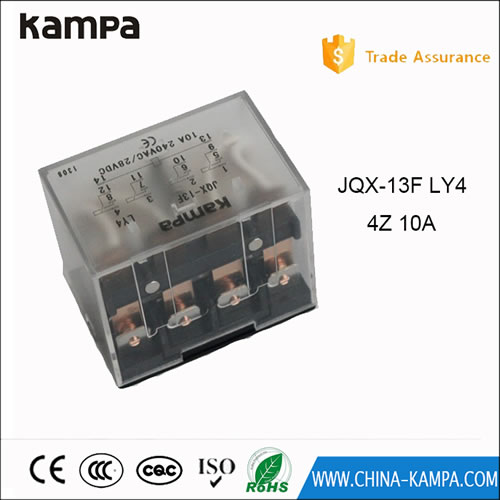

Contact Data
| Contact Form | 1Z | 2Z ,3Z,4Z |
| Contact Resistance | 50mΩ (1A 6VDC) | |
| Contact capacity | 10A250VAC/28VDC | 10A 250VAC/28VDC |
Characteristics
| Insulation Resistance | 500MΩ, 500VDC |
| Dielectric Strength | Between coil and contacts 1500VAC 1minute |
| Between open contacts 1000VAC 1minute | |
| Electronic contact group 1500VAC 1minute | |
| Operate /Release Time | 25ms /25ms |
| Terminal Type | PCB and plug type leading-out terminal |
| COIL Power | |
| Nominal Coil Power | 0.9W / 1.2VA |
Coil data
| Nominal Voltage VDC | Pull-in Voltage | Release Voltage | Coil ResistanceΩ:±10% | Nominal Voltage VAC | Pull-in Voltage | Release Voltage | Coil ResistanceΩ:±10% |
| VDC | VDC | VDC | VDC | ||||
| 5 | 4 | 0.5 | 30 | 6 | 4.8 | 1.8 | 12 |
| 6 | 4.8 | 0.6 | 40 | 12 | 9.6 | 3.6 | 42 |
| 12 | 9.6 | 1.2 | 160 | 24 | 19.2 | 7.2 | 168 |
| 24 | 19.2 | 2.4 | 640 | 48 | 38.4 | 14.4 | 675 |
| 48 | 38.4 | 4.8 | 2500 | 110/120 | 96 | 36 | 3500 |
| 110 | 88 | 11 | 12100 | 220/240 | 176 | 66 | 14000/16500 |
