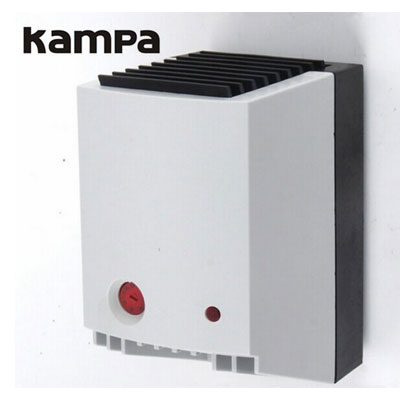

Compact heater
Heating capacity adjusts to ambient temperature
Adjustable temperature range
Clip fixing
Optical indicator
Temperature safe cut-out
Semiconductor fan heater prevents formation of condensation and ensure en even temperature in switch and control equipment, The built-in regulator is used to set the desired temperature.
Technical Data:
| Heating element | PTC resistor, self regulating and temperature limiting |
| Temperature safety cut-out | To protect against overheating in case of fan failure |
| Axial fan, ball bearing | Airflow see table |
| Service life 50,000h at 25°C (77°F) | |
| Connection | 2-pole clamp 2.5mm2, clamping torque 0.8Nm max. |
| Casing | Plastic according to UL94 V-0, light grey |
| Optical indicator | Thermostat control lamp |

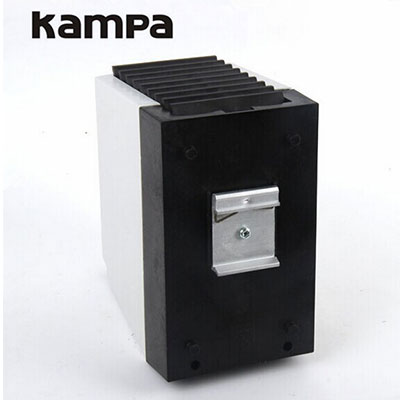

| Mounting | Clip for 35mm DIN rail, EN 50022 |
| Fitting position | Vertical |
| Dimensions | 100 x 128 x 165mm |
| Operating / Storage temperature | -45 to +70°C (-49 to +158°F) |
| Protection type / Protection class | IP20 / II (double insulated) |
