Features:
low surface temperature
Quick installation due to clip fixing
Double insulation (plastic)
Wide voltage range
Compact size
Introduction:

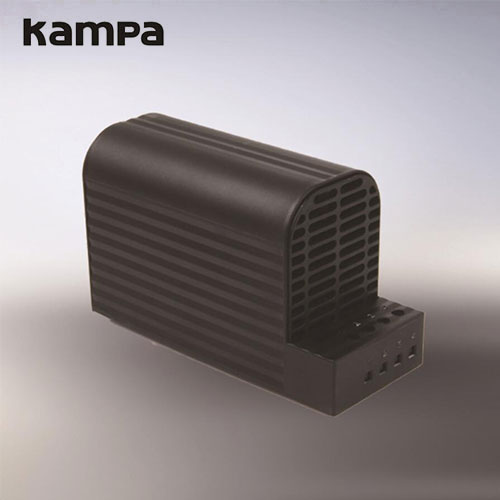

Touch safety heaters for enclosures with electrical/electronic components.
The design of the heater supports natural convection, which produces a high airflow of warm air. Due to the heater design, the surface temperature on the accessible sides of the enclosure is kept low. Our full range of thermostats and hygrostats can be connected directly to the heater CS 060. The heater is also available in a version with a plug-in thermostat without additional wiring (CSF 060). Both versions are designed for permanent operation.
Details：
|
Working voltage |
120-240V AC*（min: 110V，max 265V） |
|
Heating capacity |
See below table |
|
Heating component |
PTC resistor – Temperature limitation |
|
Surface temperature |
<80°C(176°F)，except the upper protective grille |
|
Contact |
4 terminals 2.5mm2，max torque 0.8Nm。 |
|
Pipe |
Conform to UL94 V-0 Plastic，Black |
|
Mounting |
35mm DIN rail clips，EN 50022 |
|
Mounting |
Vertical |
|
Work/Storage temperature |
-20 — +70°C（-4 — +158°F）/-45 —+70°C（-49 至 +158°F） |
|
Protection |
IP30 / 2（double insulated） |
|
NOTE |
Other voltage can be customization |
|
Art no.. |
Watts |
Max surge current |
Temperature of the air outlet |
size（mm） |
Weight（estimated） |
|
06000.0-00 |
50W |
2.5A |
+86°C |
110*60*90 |
0.3kgs |
|
06010.0-00 |
100W |
4.5A |
+120°C |
110*60*90 |
0.3kgs |
|
06020.0-00 |
1500W |
8A |
+145°C |
150*60*90 |
0.3kgs |
