Feature:
1. Dynamic heating up
2. Temperature limiting
3. Energy saving
4. Self-regulating(PTC)
5. Compact

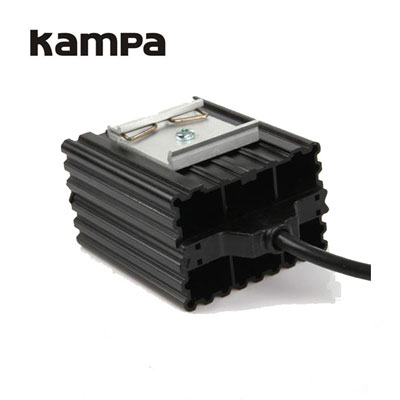

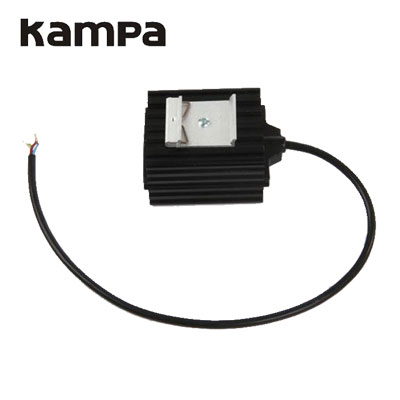

These Compact heater for avoiding malfunctions caused by condensation and for use in enclosures where the temperature may not fall below a minimum value. The aluminium radiator pofile has a chinmey effect and helps to distribute heat evenly
These heaters are used in enclosures where damage from condensation must be prevented, or where the temperature may not fall below a minimum value. The aluminum profile heater body design has a chimney effect and distributes the heat evenly. The pressure clamp connectors save time and simplify installation.
Technical Data
| Art. No. | Heating capacity* | max. current at make | L | Weight |
| 04000.0-00 | 15W | ca.0.5A | 65mm | 0.3kg |
| 04001.0-00 | 30W | ca.1.0A | 65mm | 0.3kg |
| 04003.0-00 | 45W | ca.1.0A | 65mm | 0.3kg |
| 04005.0-00 | 60W | ca.1.5A | 140mm | 0.5kg |
| 04006.0-00 | 75W | ca.1.8A | 140mm | 0.5kg |
| 04007.0-00 | 100W | ca.2.4A | 140mm | 0.5kg |
| 04008.0-00 | 150W | ca.4.5A | 220mm | 0.8kg |
(UL: Operating voltage AC/DC 110-120V, 3x AWG20×300mm sheathed cablel)
*at room temperature 20?
Operating with voltages below 140V reduces heating performance by approx. 10
Other voltages available On request(e.g. AC/DC 48V)
Heaters for tropical conditions on request
| operating voltage: | AC/DC 110-250V max.265V |
| Heating capacity: | see table |
| Heating element: | PTC resistor, self regulating |
| Radiator: | Anodized extruded aluminum profile |
| Protection class: | 2,test voltage 4000V |
| Protection type: | IP 44 |
| Connection cable: | 2×0.75mm 2×500mm silicone cable |
| Mounting: | Clip for 35mm DIN rail. EN 50022 |
