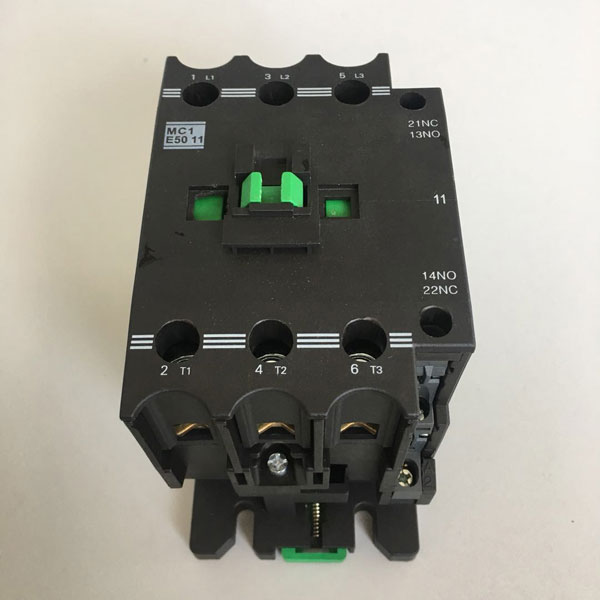

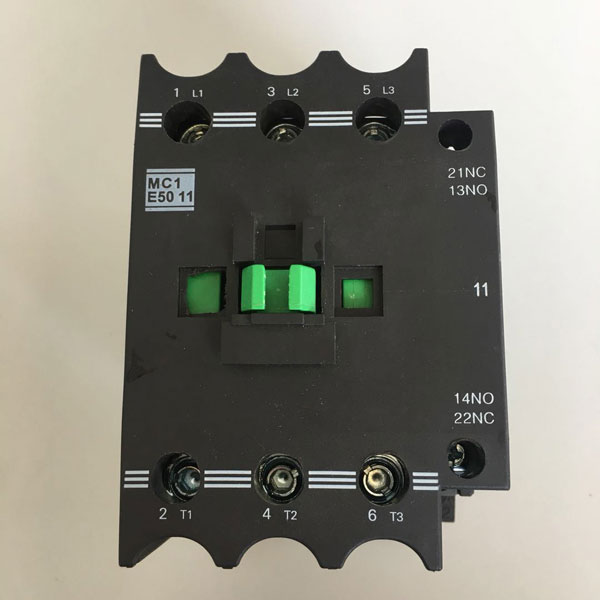

LC1E-50 AC Contactors is mainly applied to circuit of AC 50Hz or 60 Hz,rated voltage being or below 660v,DC rated voltage being or below 220V it is also applied to certain circuit of rated current being or below 9A when AC-3 use type work voltage being 380v ,additionally,this contactor could be assembled with corresponding specification thermal relay or electronic protector to form electromagnetic or electromechanical integration motor starter.
The contactor can not only connect and cut off the circuit, but also has the advantages of undervoltage release protection, zero voltage protection, large control capacity, suitable for frequent operation and remote control, reliable operation and long service life. The knife switch has no undervoltage protection, and can only be operated at close range.
LC1E-50 AC Contactors is mainly applied to circuit of AC 50Hz or 60 Hz,rated voltage being or below 660v,DC rated voltage being or below 220V it is also applied to certain circuit of rated current being or below 9A when AC-3 use type work voltage being 380v ,additionally,this contactor could be assembled with corresponding specification thermal relay or electronic protector to form electromagnetic or electromechanical integration motor starter.
| Product name | Copper/PE new types of ac contactor/ contactor,lc1e series contactor | ||||||||||
| Type | LC1-E09 | LC1-E12 | LC1-E18 | LC1-E25 | LC1-E32 | LC1-E40 | LC1-E50 | LC1-E65 | LC1-E80 | LC1-E95 | |
| Rated working current (A) |
AC3 | 9 | 12 | 18 | 25 | 32 | 40 | 50 | 65 | 80 | 95 |
| AC4 | 3.5 | 5 | 7.7 | 8.5 | 12 | 18.5 | 24 | 28 | 37 | 44 | |
| Standard power Ratings of 3 phase motors 50/60Hz Incategory AC-3 |
220/230V | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 25 |
| 380/400V | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | 45 | |
| 415V | 4 | 5.5 | 9 | 11 | 15 | 22 | 25 | 37 | 45 | 45 | |
| 500V | 5.5 | 7.5 | 10 | 15 | 18.5 | 22 | 30 | 37 | 55 | 55 | |
| 660/690V | 5.5 | 7.5 | 10 | 15 | 18.5 | 30 | 33 | 37 | 45 | 55 | |
| Rated heat current (A) | 20 | 20 | 32 | 40 | 50 | 60 | 80 | 80 | 125 | 125 | |
| Electrical life | AC3 (x104) | 100 | 100 | 100 | 100 | 80 | 80 | 60 | 60 | 60 | 60 |
| AC4 (x104) | 20 | 20 | 20 | 20 | 20 | 15 | 15 | 15 | 10 | 10 | |
| Mechanical life (x104) | 1000 | 1000 | 1000 | 1000 | 800 | 800 | 800 | 800 | 600 | 600 | |
| Number of The contacts |
3P+NO | 3P+NC+NO | |||||||||
| 3P+NC | |||||||||||
