Application

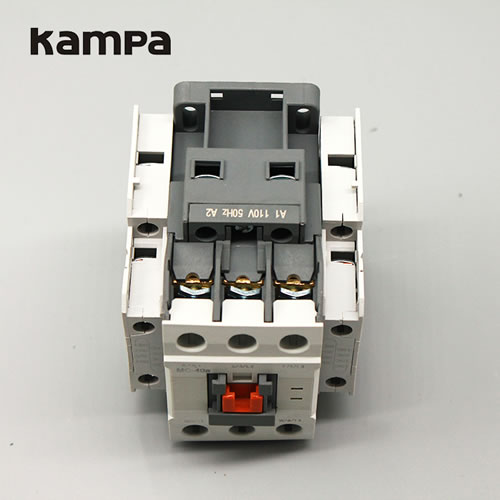

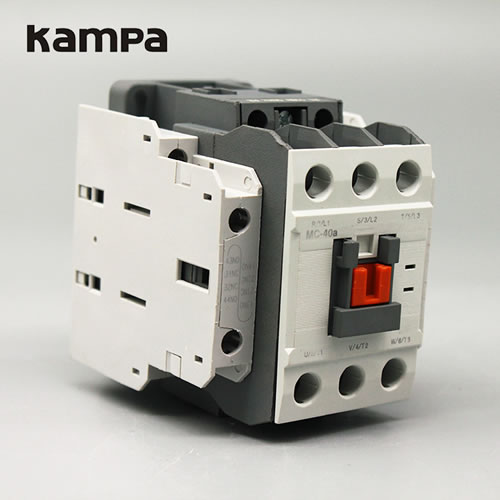

(LS) MC AC contactor is suitable for using in the circuits up to the rated voltage 660V AC50Hz OR 60Hz, rated current up to 85A, for making , breaking, frequently starting&controlling the AC motors. Combined with the auxiliary contact block, timer delay&machine-interlocking decive etc, it becomes the delay contactor, machanical interlocking contacor, star-delta starter. With the thermal relay, it is combined into the electromagnetic starter. It conforms to IEC60947-1 standard.
Specification
|
TYPE |
GMC-09 |
GMC-12 |
GMC-18 |
GMC-22 |
GMC-32 |
GMC-40 |
GMC-50 |
GMC-65 |
GMC-75 |
GMC-85 |
|
|
AC3 duty |
09A |
12A |
18A |
22A |
32A |
40A |
50A |
65A |
75A |
85A |
|
|
AC3 duty |
200- 240V |
2.5KW 11A |
3.5KW 13A |
4.5KW 18A |
5.5KW 22A |
7.5KW 32A |
11KW 40A |
15KW 55A |
18.5KW 65A |
22kw 75A |
25KW 85A |
|
380-440V |
4KW 09A |
5.5KW 12A |
7.5KW 18A |
11KW 22A |
15KW 32A |
18.5KW 40A |
22KW 50A |
30KW 65A |
37KW 75A |
45KW 85A |
|
|
500-550V |
4KW 0.5A |
7.5KW 12A |
7.5KW 13A |
15KW 22A |
18.5KW 28A |
22KW 32A |
30KW 43A |
37KW 60 A |
45KW 47A |
45KW 75A |
|
|
690V |
4KW 05A |
7.5KW 09A |
7.5KW 09A |
15KW 18A |
18.5KW 21A |
22KW 25A |
30KW 33A |
37KW 47A |
45KW 47A |
45KW 52A |
|
|
Thermal current(Ith) |
20A |
25A |
30A |
32A |
45A |
50A |
70A |
80A |
90A |
100A |
|
|
AC motor |
Single |
115V |
0.5HP |
0.5HP |
1HP |
2HP |
2HP |
3HP |
3HP |
5HP |
7.5HP |
|
230V |
1HP |
2HP |
3HP |
3HP |
5HP |
5HP |
7.5HP |
10HP |
15HP |
||
|
Three |
200V |
2HP |
3HP |
5HP |
7HP |
7.5HP |
10HP |
10HP |
15HP |
25HP |
|
|
230V |
3HP |
3HP |
5HP |
7.5HP |
10HP |
10HP |
15HP |
20HP |
20HP |
||
|
460V |
2HP |
7.5HP |
10HP |
10HP |
20HP |
25HP |
30HP |
40HP |
50HP |
||
|
575V |
5HP |
10HP |
15HP |
15HP |
20HP |
25HP |
30HP |
40HP |
50HP |
||
