Description:

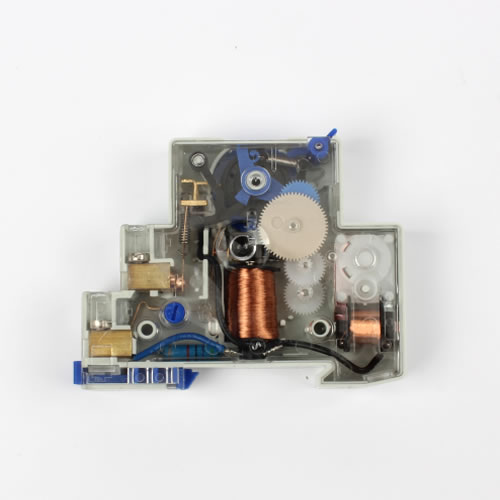

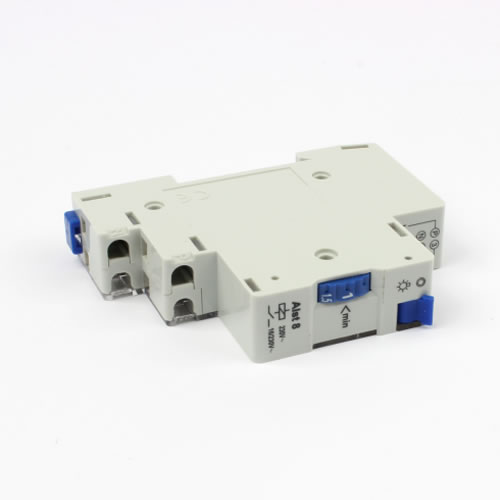

- Staircase time switch, electro-mechcanical
- 4 conductor with floor lighting connection
- 3 conductor without floor lighting (no longer permitted for new systems)
- Retriggerable
- No closed-circuit current consumption
- Toggle switch for permanent light ON
- Reliable due to synchronous motor drive
- Simplest possible time setting and direct delay time readout on absolutescale
- Precision mechanics and therefore exact switching period
- Very low sensitivity to interference
Technical Data:
| Operating voltage | 230 V AC |
| Frequency | 50 Hz |
| Width | 1 module |
| Installation type | DIN rail |
| Stand-by consumption | 0 W |
| Glow lamp load | 50mA |
| Setting range time | 1 – 7 min |
| Type of connection | 3-/4-conductors |
| 3/4-way conductors | Yes |
| Secondary switching | After 30 s |
| Type of contact | NO contact |
| Opening width | > 3 mm |
| Switching output | Not potential-free (230 V) |
| Incandescent/halogen lamp load | 2300 W |
| Fluorescent lamp load (conventional)lead-lag circuit | 2300 VA |
| Fluorescent lamp load (conventional) parallel-corrected | 1300 VA 70 uF |
| energy saving lamps | 150 W |
| LED lamp | < 2 W = 30 W or > 2 W < 8 W = 90 W |
| Fluorescent lamp load (electronic ballast) | 600 W |
| Fluorescent lamp load (conventional)series-corrected | 2300 VA |
| Switching capacity | 6 A (at 230 V AC, cos φ = 0.3), 16 A (at 230 V AC, cos φ = 1) |
| Switch for permanent light | Toggle switch |
| Housing and insulation material | High-temperature resistant, self-extinguishing thermoplastic |
| Ambient temperature | -10 °C … +50 °C |
| Protection class | II in accordance with EN 60 730-1 |
| Type of protection | IP 20 |
