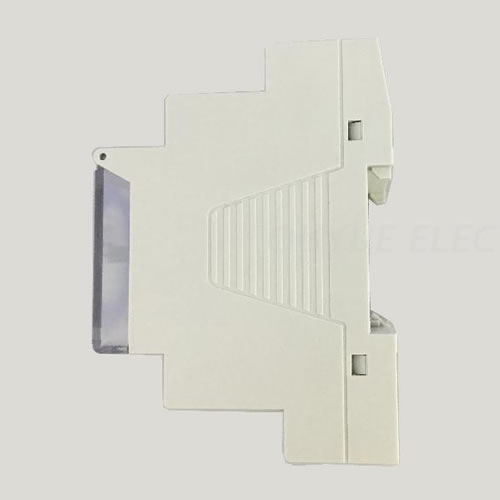

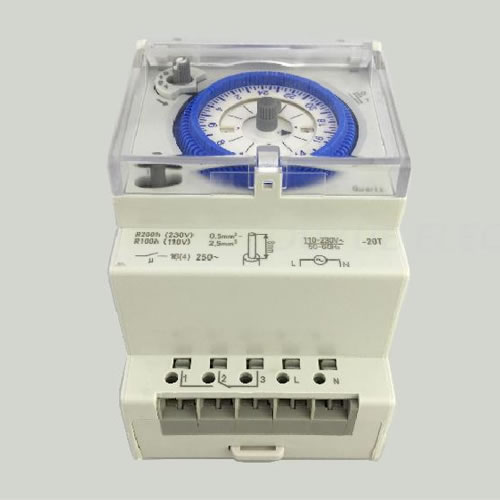

Time Switch SUL181d Description:
- Analogue time switch
- 1 channel
- DuoFix spring terminals
- Switching preselection
- Manual switch with 3 positions:Permanent ON/AUTO/permanent OFF
- Switching status display
- Daily program
- With power reserve (NiMH rechargeable battery)
- 96 switching segments
- Quartz controlled
- Shortest switching time: 15 minutes
- Clock hands for time display and in addition 12/24 hour recognition
- Simple summer/winter time correction
Technical Data:
| Operating voltage | 110-230 V AC |
| Frequency | 50-60 Hz |
| Width | 3 modules |
| Installation type | DIN-rail |
| Program | Daily program |
| Power reserve | – 200 hours |
| Max. switching capacity at 250 V AC, cos φ = 1 | 16 A |
| Max. switching capacity at 250 V AC, cos φ = 0.6 | 4 A |
| Shortest switching time | 15 min |
| Programmable every | 15 min |
| Time accuracy | ≤ ± 1 s/day(Quartz) |
| Power consumption | 1.5VA |
| Type of protection | IP 20 |
| Protection class | II in accordance with EN 60 730-1 |
| Ambient temperature | –20 °C … +55 °C |
