| Main | |
| range | EasyPact |
| range of product | EasyPact |

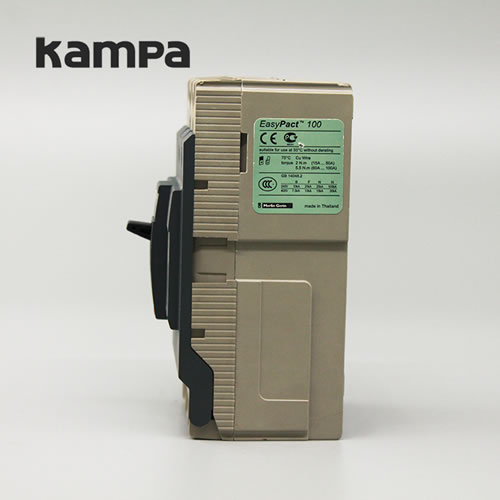

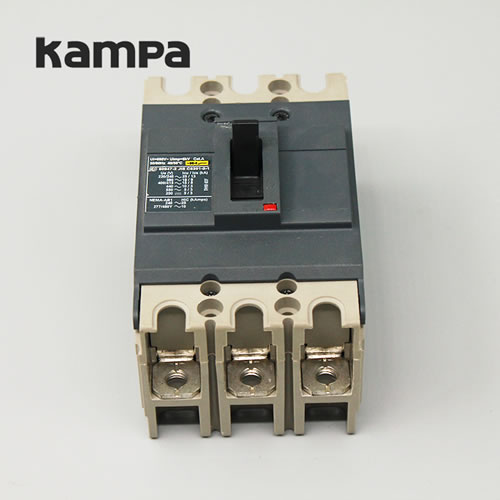

| product name | EasyPact EZC |
| product or component type | Circuit breaker |
| device short name | Easypact EZC100B |
| circuit breaker name | Easypact EZC100B |
| device application | Distribution |
| poles description | 3P |
| protected poles description | 3t |
| network type | AC |
| DC | |
| network frequency | 50/60 Hz |
| [In] rated current | 100 A ( 40 ?C ) |
| [Ui] rated insulation voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-2 |
| [Ue] rated operational voltage | 550 V AC 50/60 Hz conforming to IEC 60947-2 |
| breaking capacity code | B |
| breaking capacity | 10 kA Icu at 110...130 V AC 50/60 Hz conforming to IEC 60947-2 |
| 10 kA Icu at 220...240 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 5 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 2.5 kA Icu at 550 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 7.5 kA Icu at 380 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 7.5 kA Icu at 400...415 V AC 50/60 Hz conforming to IEC 60947-2 | |
| [Ics] rated service breaking capacity | Ics 0.625 kA 550 V AC 50/60 Hz conforming to IEC 60947-2 |
| Ics 1.25 kA 440 V AC 50/60 Hz conforming to IEC 60947-2 | |
| Ics 1.875 kA 380 V AC 50/60 Hz conforming to IEC 60947-2 | |
| Ics 1.875 kA 400/415 V AC 50/60 Hz conforming to IEC 60947-2 | |
| Ics 2.5 kA 110/130 V AC 50/60 Hz conforming to IEC 60947-2 | |
| Ics 2.5 kA 220/230/240 V AC 50/60 Hz conforming to IEC 60947-2 | |
| suitability for isolation | Yes conforming to IEC 60947-2 |
| utilisation category | Category A |
| trip unit name | TM-D |
| trip unit technology | Thermal-magnetic |
| trip unit rating | 15 A ( 50 ?C ) |
| protection type | Overload protection |
| Short-circuit protection | |
| pollution degree | 3 conforming to IEC 60664-1 |
| 3 conforming to IEC 947-1 | |
| Complementary | |
| control type | Toggle |
| mounting mode | Fixed |
| mounting support | Backplate |
| upside connection | Front |
| downside connection | Front |
| mechanical durability | 8500 cycles |
| electrical durability | Category A : 1500 cycles 415 V AC 50/60 Hz conforming to IEC 60947-2 |
| connection pitch | 25 mm |
| local signalling | Positive contact indication |
| neutral protection setting | Without protection |
| earth-leakage protection | Without |
| height | 130 mm |
| width | 75 mm |
| depth | 60 mm |
| market segment | Small commercial |
| compatibility code | EZC100 |
| Environment | |
| standards | EN/IEC 60947-1 |
| EN/IEC 60947-2 | |
| JIS C8201-2-2 | |
| GB/T 14048.2 | |
| IP degree of protection | IP20 conforming to IEC 60529 |
| IK degree of protection | IK07 conforming to IEC 62262 |
| ambient air temperature for operation | -25...70 ?C |
| ambient air temperature for storage | -35...85 ?C |
| Contractual warranty | |
| Warranty period | 18 months |
