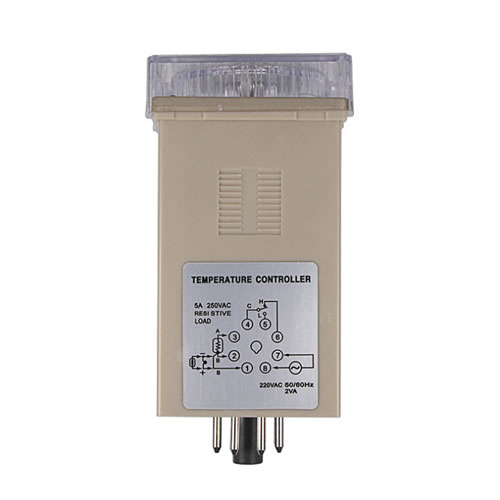

| Type | E5C2 |
| Power Supply | AC:110V/220V/380V±10%,50/60Hz |
| Input | K,J |
| Output | RELAY |
| Alarms | No alarm |
| Range | 0-400℃ |
| Setting precision | Less than ±1% full scale or range display |
| Indicating precision | Less than ±2°C |
| Control Action | ON/OFF type , proportion type (PID) |
| Output Mode | Relay connection point 5A 250VAC, voltage of non acting point 12VDC for SSR use |
| Proportion Cycle | Relay:15secs, Non connection point :2secs |
| power Consumption | 3W |
| Outline Dimension | 48*48*111mm |
| Install Dimension | 45*45 |
| Operating temperature | -10°C~+55°C |
