Specification

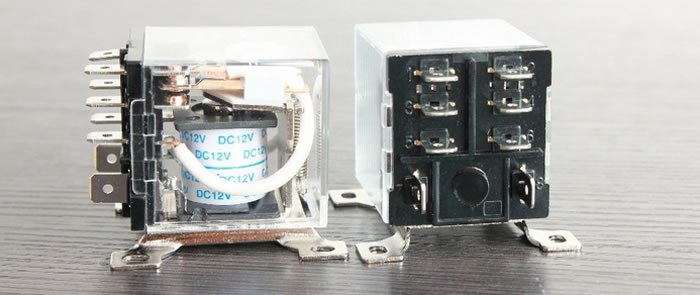

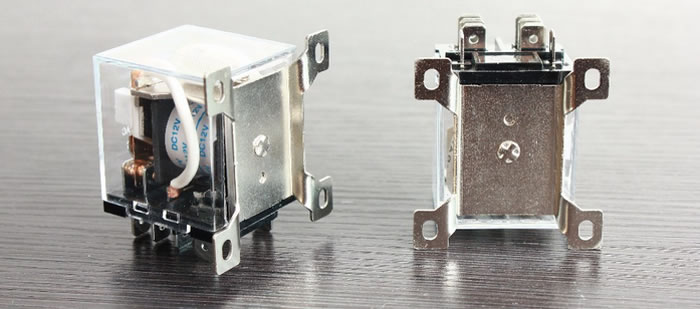

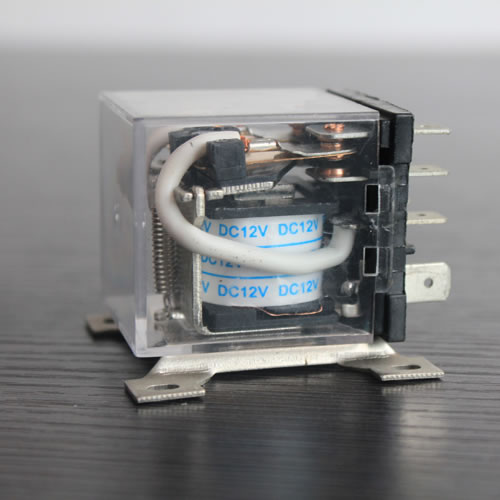

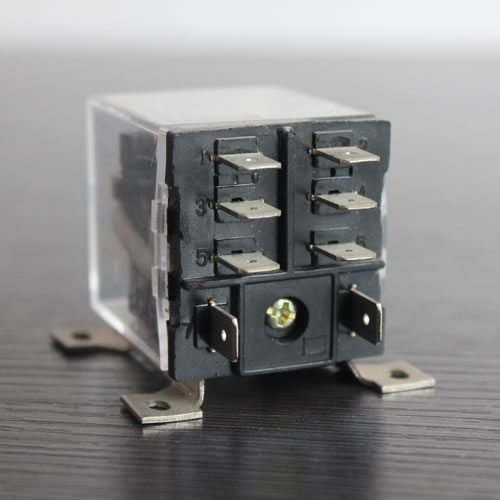

| Part NO. | jqx 12f 2z datasheet | |||
| Dimension | 48*45.8*38.5 | |||
| Contact Feature | Form | 1A,1B,1C | 2A,2B,2C | |
| Rated load | 30A/240VAC 28VDC | |||
| Contact resistance | ≤100mΩ | |||
| Material | Silver Alloy | |||
| Electrical life | ≥1*105 | |||
| Mechanical life | ≥1*107 | |||
| Operate voltage (25℃) | DC:≤75%*Rated voltage | |||
| AC:≤80%*Rated voltage | ||||
| Release voltage (25℃) | DC:≥10%*Rated voltage | |||
| AC:≥30%*Rated voltage | ||||
| Maximum voltage (25℃) | 110%*Rated voltage | |||
| Normal coil voltage | DC | 6-220V | ||
| AC | 6-380V | |||
| Normal coil power | DC | 2.0W | ||
| AC | 4VA | |||
| Pick-up time(Rated voltage) | ≤30ms | |||
| Release time(Rated voltage) | ≤20ms | |||
| Dielectric strength | Between Same-pole contacts | 1500VAC/1min(leakage current 1mA) | ||
| Between Opposite-pole contacts | 1500VAC/1min(leakage current 1mA) | |||
| Between contacts and coil | 2500VAC/1min(leakage current 1mA) | |||
| Insulation resistance | ≥500mΩ(500VDC) | |||
| Ambient temperature | -25℃ ~55℃ | |||
| Ambient humidity | 45%-75%RH | |||
| Atmospheric pressure | 86-106KPa | |||
| Shock resistance | 10G (sinusoidal half-wave pulse: 11ms) | |||
| Vibration resistance | 10-55Hz (double amplitude: 1.0mm) | |||
| Installation | PCB,SCREW | |||
