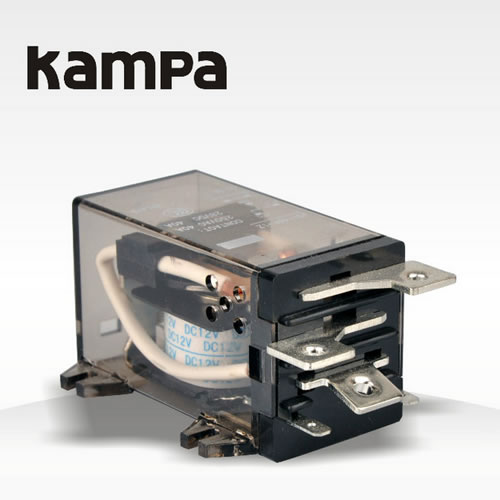

Specification
| Dimension | 72.5mm*47.5mm*45.7mm | |
| Contact | Contact form | 1Z,1H,1D |
| Rated load | 40A.50A | |
| Max swithing voltage | 240VAC/28VDC | |
| Contact resistance | ≤100mΩ | |
| Material | Sliver Alloy | |
| Electrical life | ≥1000000 | |
| Machanical life | ≥10000000 | |
| Max allowed voltage | DC:≤75%XRated voltage | |
| AC:≤80%XRated voltage | ||
| Release voltage | DC:≥10%xRated voltage | |
| AC:≥30%Rated voltage | ||
| Nominal voltage | DC | 6V~220V |
| AC | 6V~380V | |
| Coil voltage | DC | DC:1.2W/2W |
| AC | AC:4VA | |
| Operate time | ≤25ms | |
| Release time | ≤ms | |
| Weight | 110g | |
| Package dimension | 402mmx 288mmx370mm/ 100pcs/ctn | |
| Weight | 10.86KG/CTM Gross weight:11.38KG/CTN | |
