Application

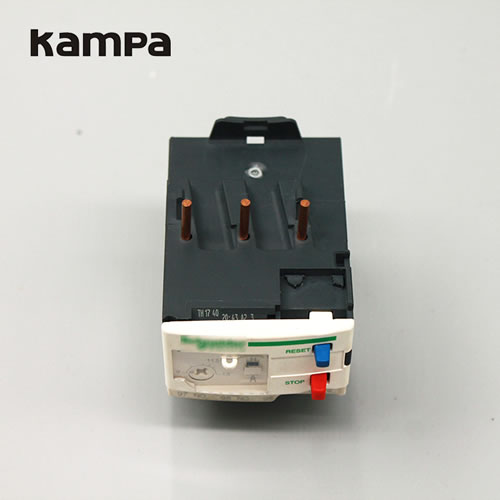

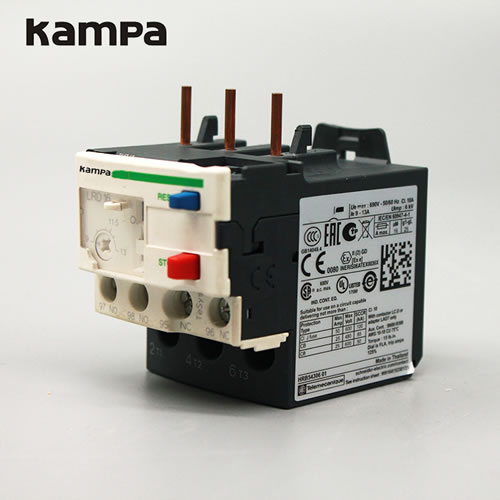

LR-D series thermal relay is suitable for using in the circuits rated voltage up to 660V, rated current 93A AC 50/60Hz, for over-current protection of AC motor. The relay has the differential mechanism and temperature compensation and can plug in CJX2N series AC contactor. The product conforms to IEC60947-4-1standard.
Specification
|
Type |
Number |
Setting Range(A) |
For Contactor |
|
LRD |
D01 |
0.10-0.16 |
LC1-D09-D38 |
|
D02 |
0.16-0.25 |
LC1-D09-D38 |
|
|
D03 |
0.25-0.40 |
LC1-D09-D38 |
|
|
D04 |
0.40-0.63 |
LC1-D09-D38 |
|
|
D05 |
0.63-1 |
LC1-D09-D38 |
|
|
D06 |
1-1.7 |
LC1-D09-D38 |
|
|
D07 |
1.6-2.5 |
LC1-D09-D38 |
|
|
D08 |
2.5-4 |
LC1-D09-D38 |
|
|
D010 |
4-6 |
LC1-D09-D38 |
|
|
D012 |
5.5-8 |
LC1-D09-D38 |
|
|
D014 |
7-10 |
LC1-D09-D38 |
|
|
D016 |
9-13 |
LC1-D09-D38 |
|
|
D021 |
12-18 |
LC1-D09-D38 |
|
|
D022 |
16-24 |
LC1-D25-D38 |
