Application

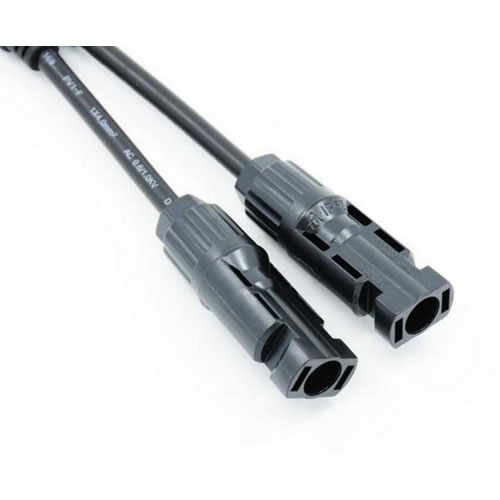

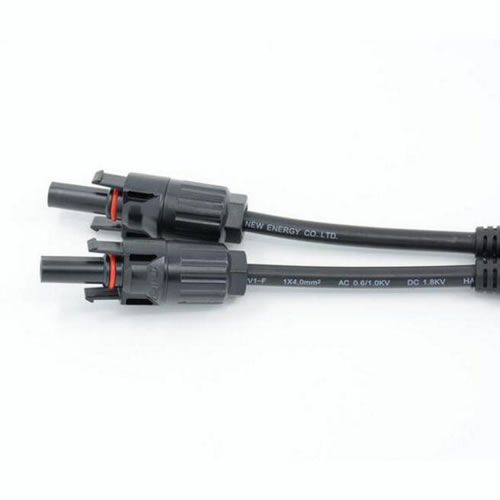

This Y Style MC4 compatible Solar Cable Connector Set is a perfect solution to parallel connect multiple panels together.
The Y MC4 Solar Cable Connector Set includes one Y style MC4 cable connector one female to three male (F/M/M) and one Y style MC4 cable connector one male to three female (M/F/F).
Electron-beam cross-linked compounds UV and ozone resistant
Hydrolysis resistant
High temperature resistant, the materials do not melt or flow
Good cold flexibility
Long life cycle
IP67 Waterproof
Specification:
Nominal Voltage: 1000 V DC
Temperature rating: -40 degree ~ +90 degree
Flame Retardant Grade: UL94-VO
Rated current: 20A~30A
Contact material: Copper, tin plated
Quantity: 1 pair
Material: PPO Insulation material
Color: Black
Cable Length: approx. 36cm
