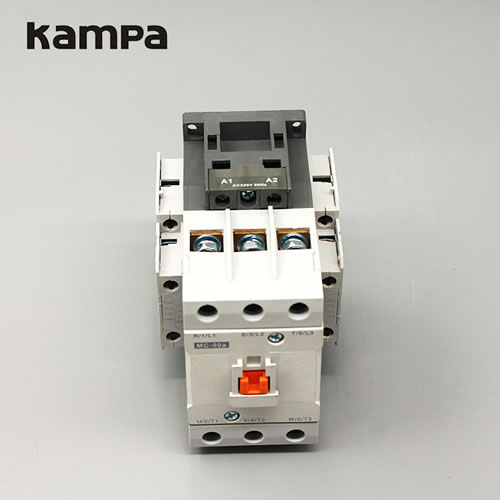

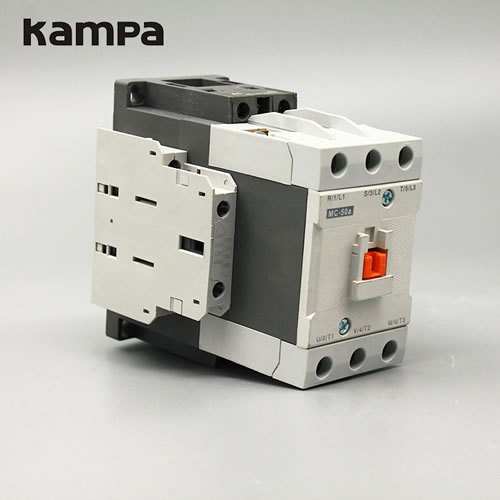

MC-50 AC contactor 3P
Application (LS) MC AC contactor is suitable for using in the circuits up to the rated voltage 660V AC50Hz OR 60Hz, rated current up to 85A, for making , breaking, frequently starting&controlling the AC motors. Combined with the auxiliary contact block, timer delay&machine-interlocking decive etc, it becomes the delay contactor, machanical interlocking contacor, star-delta starter. […]
Application
(LS) MC AC contactor is suitable for using in the circuits up to the rated voltage 660V AC50Hz OR 60Hz, rated current up to 85A, for making , breaking, frequently starting&controlling the AC motors. Combined with the auxiliary contact block, timer delay&machine-interlocking decive etc, it becomes the delay contactor, machanical interlocking contacor, star-delta starter. With the thermal relay, it is combined into the electromagnetic starter. It conforms to IEC60947-1 standard.
Specification
| TYPE | GMC-09 | GMC-12 | GMC-18 | GMC-22 | GMC-32 | GMC-40 | GMC-50 | GMC-65 | GMC-75 | GMC-85 | |
| AC3 duty | 09A | 12A | 18A | 22A | 32A | 40A | 50A | 65A | 75A | 85A | |
| AC3 duty | 200- 240V | 2.5KW 11A | 3.5KW 13A | 4.5KW 18A | 5.5KW 22A | 7.5KW 32A | 11KW 40A | 15KW 55A | 18.5KW 65A | 22kw 75A | 25KW 85A |
| 380-440V | 4KW 09A | 5.5KW 12A | 7.5KW 18A | 11KW 22A | 15KW 32A | 18.5KW 40A | 22KW 50A | 30KW 65A | 37KW 75A | 45KW 85A | |
| 500-550V | 4KW 0.5A | 7.5KW 12A | 7.5KW 13A | 15KW 22A | 18.5KW 28A | 22KW 32A | 30KW 43A | 37KW 60 A | 45KW 47A | 45KW 75A | |
| 690V | 4KW 05A | 7.5KW 09A | 7.5KW 09A | 15KW 18A | 18.5KW 21A | 22KW 25A | 30KW 33A | 37KW 47A | 45KW 47A | 45KW 52A | |
| Thermal current(Ith) | 20A | 25A | 30A | 32A | 45A | 50A | 70A | 80A | 90A | 100A | |
| AC motor | Single phase | 115V | 0.5HP | 0.5HP | 1HP | 2HP | 2HP | 3HP | 3HP | 5HP | 7.5HP |
| 230V | 1HP | 2HP | 3HP | 3HP | 5HP | 5HP | 7.5HP | 10HP | 15HP | ||
| Three phase | 200V | 2HP | 3HP | 5HP | 7HP | 7.5HP | 10HP | 10HP | 15HP | 25HP | |
| 230V | 3HP | 3HP | 5HP | 7.5HP | 10HP | 10HP | 15HP | 20HP | 20HP | ||
| 460V | 2HP | 7.5HP | 10HP | 10HP | 20HP | 25HP | 30HP | 40HP | 50HP | ||
| 575V | 5HP | 10HP | 15HP | 15HP | 20HP | 25HP | 30HP | 40HP | 50HP | ||
-
