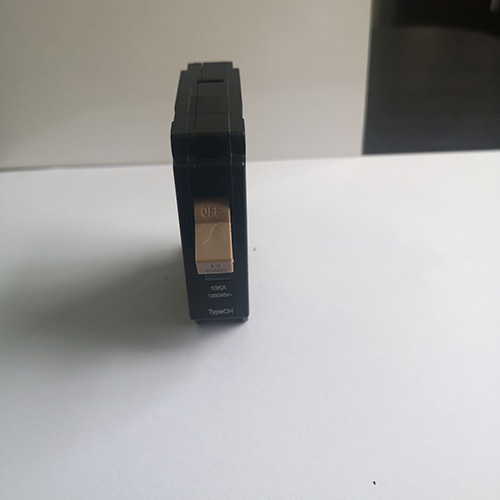

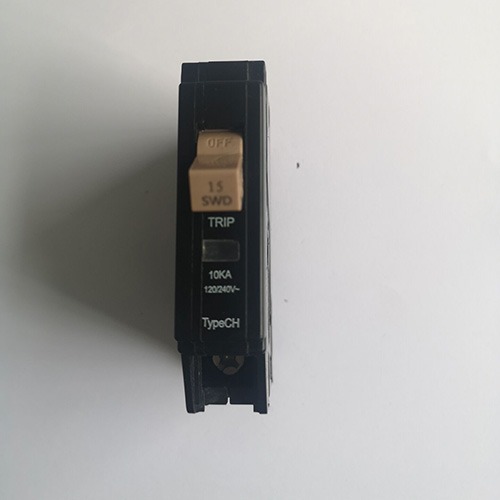

Features:
• For protection against overload and short circuits in the electrical distribution system. Use in domestic, commercial and light industrial installations.
Specification
| CH TYPE MCB, Rating (In) | 1-63 A |
| Poles | 1P, 2P, 3P,4P |
| Certified compliant | BS EN 60898-1 |
| Breaking capacity | 120V/240V AC 10000A |
| Endurance (O-C) electrical | 4.000 cycles |
| mechanical | 10.000 cycle |
| Operating temperature | -5 deg C to +60 deg C |
| Storage Temperature | -40 deg C to +85 deg C |
| Connection | rigid copper cables 3 to 25 A 1 to 25 mm2 Tightening torque: 2 Nm |
| Flexible copper cables | 3 to 25 A 1 to 16 mm2 Tightening torque: 2 Nm |
-
