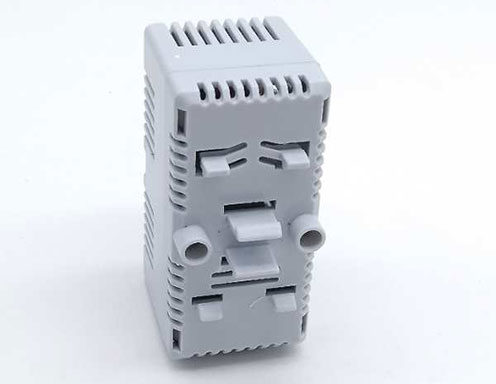

This red-dial adjustable mechanical cabinet thermostat is a reliable, power-free solution for temperature control in electrical enclosures, control panels, and industrial cabinets. With a wide 0–60°C adjustable range, it lets you set precise activation points to trigger cooling fans or heating elements, preventing overheating and condensation damage to your electrical components.
Designed for easy DIN rail mounting, it fits seamlessly into standard cabinets and requires no batteries or external power supply, ensuring fail-safe, maintenance-free operation. The durable heat-resistant housing and clear red adjustment dial make it simple to install and use, making it an ideal choice for both commercial and industrial applications.
SPECIFICATION
| MODEL NO. | BTO011 |
| Input voltage | 250 V |
| Sensor type | Bimetal |
| Contacts type and composition | NC |
| Temperature setting range | 0…60 °C |
| Contact resistance | < 10 mOhm |
| Service life in cycles | >= 100000 cycles |
| Maximum switching capacity | 10 A 250 V AC resistive |
| 15 A 120 V AC resistive | |
| 30 W DC | |
| 2 A 120…250 V AC inductive pf: 0.6 | |
| Electrical connection | 4 terminals 2.5 mm2 |
| Mounting mode | Clipped |
| Mounting location | On mounting plate |
| 35 mm DIN rail | |
| Spacial upright | |
| Cross rails | |
| Ambient air temperature for operation | -20…80 °C |
| IP degree of protection | IP20 |
| Hysteresis | 0.07 |
| Number of outputs | 1 output(s) ventilation function |
| Material | ABS |
-
